15155EU-A-700-001R
Item Code: 15155EU-A-700-001R Description: Fives Demo Spiral Chute Customer: Talos Engineered Products Ltd Manufacture Date: 25 April 2023 Maintenance Requirements: None
Design by: Talos Engineered Products Ltd Stanchion Height: 4170mm Between Frames: 1320mm Primary Colour: Slate Grey RAL 7015 Secondary Colour: Traffic Yellow RAL 1023 Infeed Material: 304B Transport Panel Material: UHMW Exit Material: 304B Support Finish: Polyester Powder Coat Recycling: - UHMW: Contact us for Approved Material Recycler - Stainless Steel: Use local steel recycling facility - Powder Coated Steel: Use local steel recycling facility

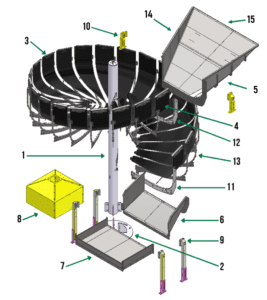

Item 1 STA-W08-250-044R Right Stanchion Weldment Quantity 1
Item 2 STA-W-005M Stanchion Base Weldment Quantity 1
Item 3 PAN-A-5215-5.5M-5222B-R Panel Assembly Quantity 23
Item 4 PAN-A-5215-5.5M-5222B-1R Panel Assembly Quantity 1

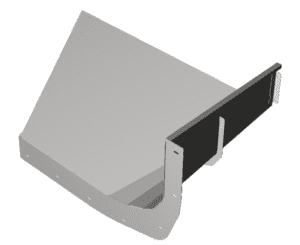

Item 5 INL-SS-W-289R Inlet Lower Weldment Quantity 1

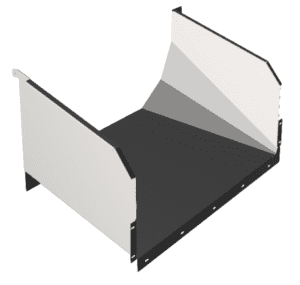

Item 6 DIS-SS-W-139R Discharge Weldment Quantity 1

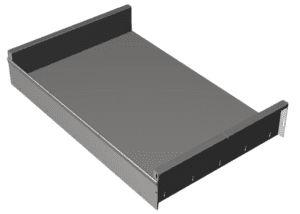

Item 7 DIS-SS-TBL-A-011 Discharge Table Quantity 1

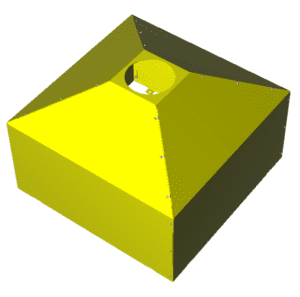

Item 8 GRD-DH-A-012 Stanchion Base Guard Quantity 1

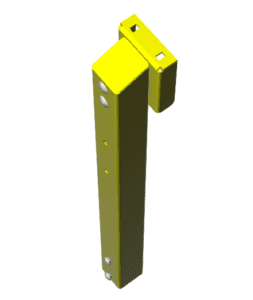

Item 9 XA000-0700-014 Table Support Quantity 4

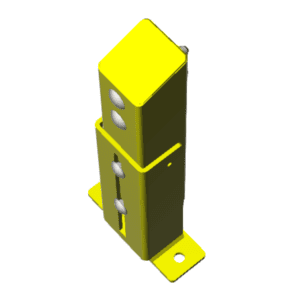

Item 10 XA000-0800-001 Inlet Support Quantity 2
Item 11 RIB-A-52-017 Left Rib End Assembly Quantity 1
Item 12 RIB-A-52-018 Right Rib End Assembly Quantity 1
Item 13 RIB-A-52-008 Common Rib Assembly Quantity 23

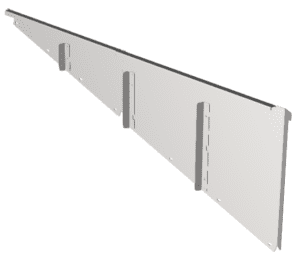

Item 14 INL-SS-W-001RM Inlet Wall Weldment Quantity 1

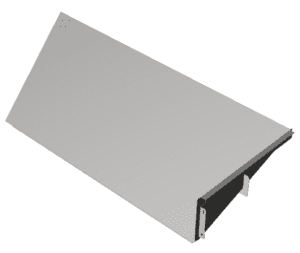

Item 15 INL-SS-W-002RM Inlet Upper Weldment Quantity 1
