151562EU-A-0800-101
Item Code: 151562EU-A-0800-101 Description: AMZ BCN8 Dual Chutes Customer: Amazon Road Transport Spain S.L.U. Manufacture Date: 16 June 2023 Maintenance Requirements: None
Design by: Talos Engineered Products Ltd Stanchion Height: N/A Between Frames: 1540mm to 2400mm Primary Colour: N/A Secondary Colour: Traffic Yellow RAL 1023 Infeed Material: 304-2B Stainless Steel Transport Panel Material: 304-2B Stainless Steel Exit Material: 304-2B Stainless Steel Support Finish: Polyester Powder Coat Recycling: - Stainless Steel: Use local steel recycling facility - Powder Coated Steel: Use local steel recycling facility

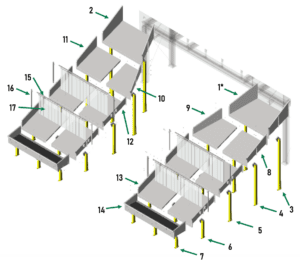

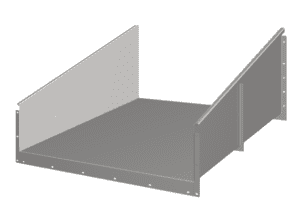

Item 1* CHUS-SS-W-01-0800-014 *Chute # AR2-3 CHUS-SS-W-01-0800-011 Upper Chute Weldment 14/11 Quantity 1

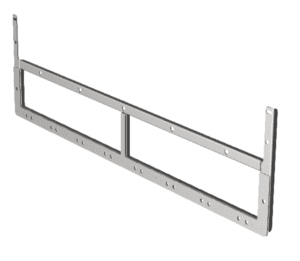

Item Not Shown 151562EU-W-0800-001 *Only Chutes # AR2-3, AR2-4, AR2-5, AR2-6, AR3-3, AR3-4, AR3-5 and AR3-6 Reinforcement Weldment Quantity 1

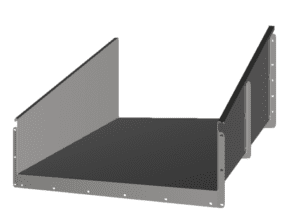

Item 2 CHUS-SS-W-01-0800-002 Upper Chute Weldment 2 Quantity 1

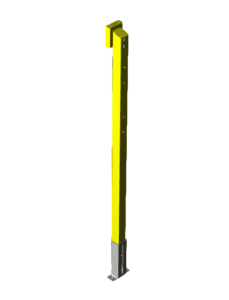

Item 3 XA000-0700-019 Chute Support 19 Quantity 4

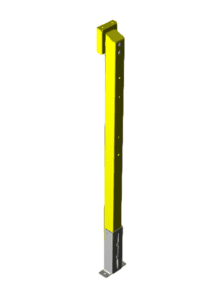

Item 4 XA000-0700-021 Chute Support 21 Quantity 6

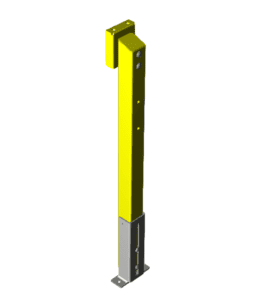

Item 5 XA000-0700-015 Chute Support 15 Quantity 6

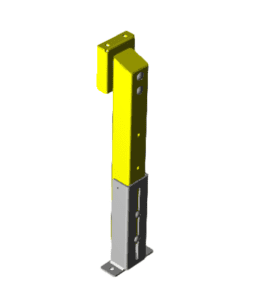

Item 6 XA000-0700-017 Chute Support 17 Quantity 6

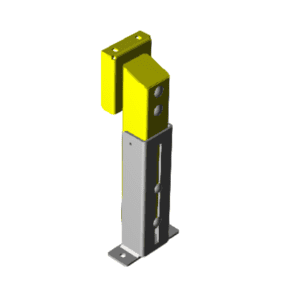

Item 7 XA000-0700-022 Chute Support 22 Quantity 6

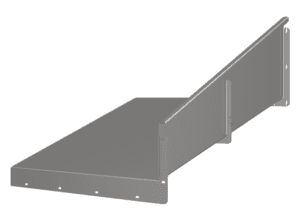

Item 8 CHUS-SS-W-01-0800-012 Upper Chute Weldment 12 Quantity 1

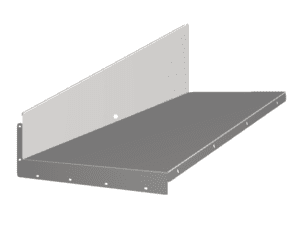

Item 9 CHUS-SS-W-01-0800-013 Upper Chute Weldment 13 Quantity 1

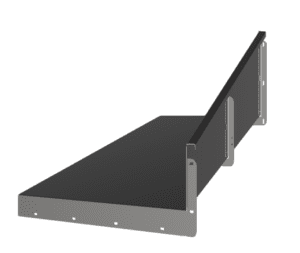

Item 10 CHUS-SS-W-01-0800-004 Upper Chute Weldment 4 Quantity 1

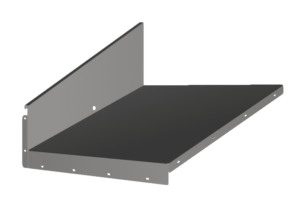

Item 11 CHUS-SS-W-01-0800-003 Upper Chute Weldment 3 Quantity 1

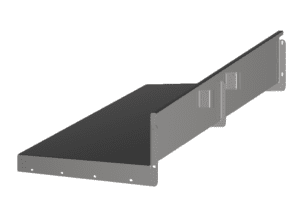

Item 12 CHUS-SS-W-01-0800-008 Upper Chute Weldment 8 Quantity 1

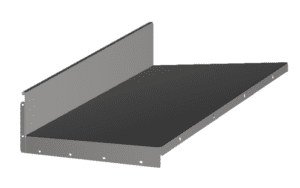

Item 13 CHUS-SS-W-01-0800-007 Upper Chute Weldment 7 Quantity 1

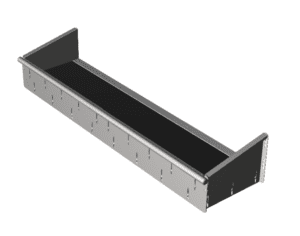

Item 14 DIS-SS-TBL-W-0800-002 Discharge Table Quantity 1

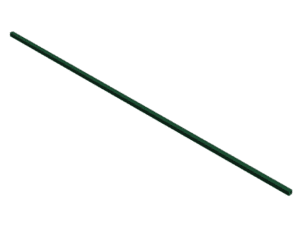

Item 15 CHUS-P-01-0800-152 Curtain Bar Quantity 4

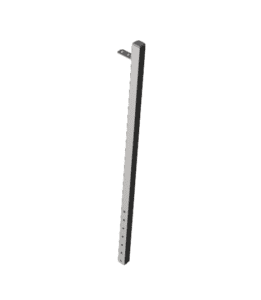

Item 16 CHUS-W-01-0800-014 Curtain Bar Support Quantity 8

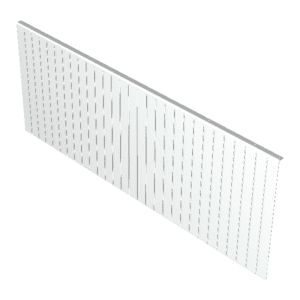

Item 17 CHUS-P-01-0800-155 Upper Curtain Quantity 2

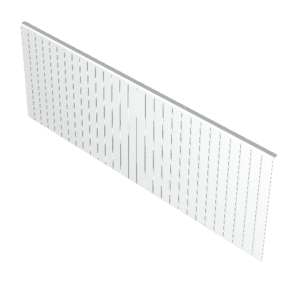

Item 18 CHUS-P-01-0800-156 Lower Curtain Quantity 2
