PRT-0011-A-0600-003
Item Code: PRT-00112-A-0600-003 Description: Parcel + Post Expo Spiral Chute Customer: Talos Engineered Products Ltd Manufacture Date: 18 August 2022 Maintenance Requirements: None
Design by: Talos Engineered Products Ltd Stanchion Height: 2300mm Between Frames: 760mm Primary Colour: Talos Green RAL 6029 Secondary Colour: Traffic Grey RAL 7042 Infeed Material: 304B Transport Panel Material: UHMW Exit Material: 304B Support Finish: Polyester Powder Coat Recycling: - UHMW: Contact us for Approved Material Recycler - Stainless Steel: Use local steel recycling facility - Powder Coated Steel: Use local steel recycling facility

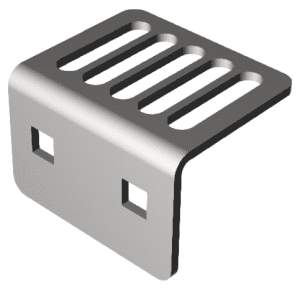

Item 1 BRKT-RIB-003 Rib Bracket Quantity 13

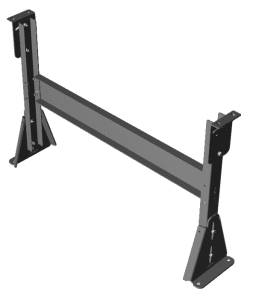

Item 2 BSUP-331-023-030-01 BSUP Assembly Quantity 2
Item 3 DIS-SS-TBL-A-10 Discharge Table Quantity 1
Item 4 DIS-SS-W-130 760 BF Discharge Quantity 1

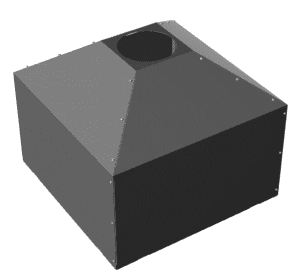

Item 5 GRD-DH-A-009 760 Dog House Assy. 200 Pipe Quantity 1

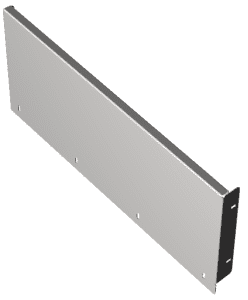

Item 6 INL-SS-P-473R Merge Guardrail Quantity 1

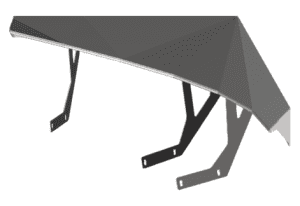

Item 7 INL-SS-W-064R Merge Section 760 BF Quantity 1

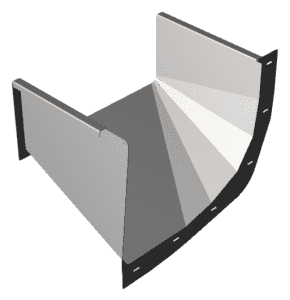

Item 8 INL-SS-W-261 760 BF Inlet 1 Quantity 1

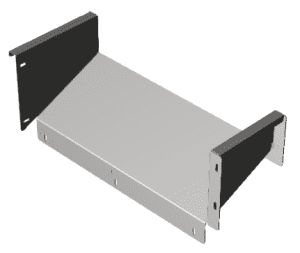

Item 9 INL-SS-W-262 760 BF Inlet 2 Quantity 1

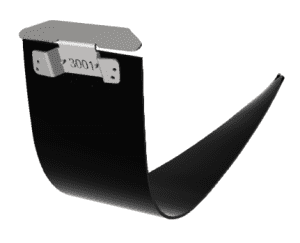

Item 10 PAN-A-3001-25-3023B-1R Panel Assembly Quantity 1

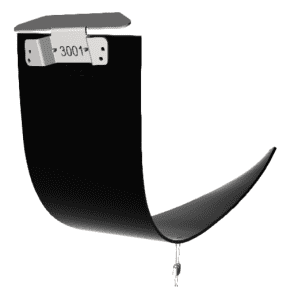

Item 11 PAN-A-3001-25-3023B-R Panel Assembly Quantity 5

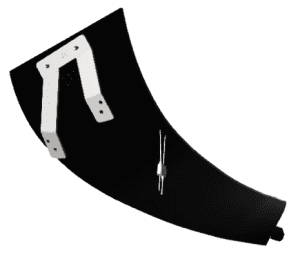

Item 12 PAN-A-3001-25-3023B-3R Panel Assembly Quantity 6

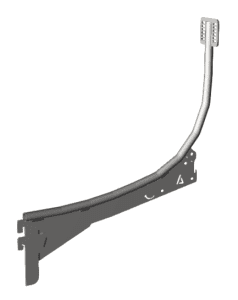

Item 13 RIB-A-30-001 Right Rib End Assembly Quantity 5

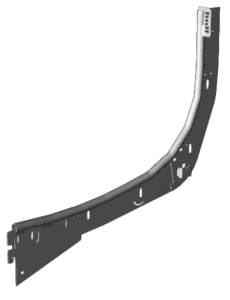

Item 14 RIB-A-30-002 Right Rib End Assembly Quantity 1

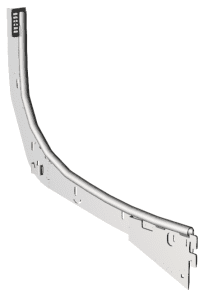

Item 15 RIB-A-30-003 Right Rib End Assembly Quantity 1

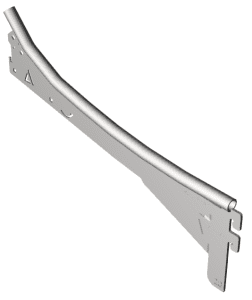

Item 16 RIB-A-30-004 Right Rib End Assembly Quantity 5

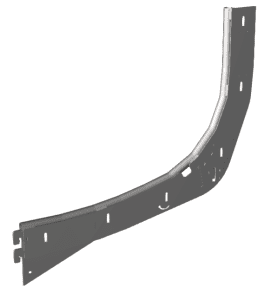

Item 17 RIB-A-30-005 Right Rib End Assembly Quantity 1

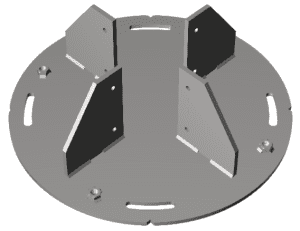

Item 18 STA-W-001 760 Stanchion Base Weldment Quantity 1

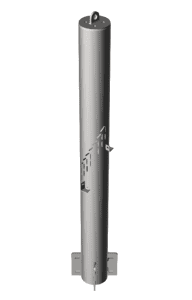

Item 19 STA-W08-250-025R Right Stanchion Weldment Quantity 1
